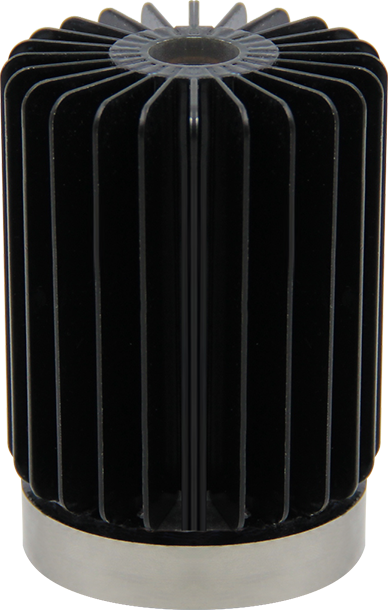

SFN-DY-600 is a power module based on static thermoelectric conversion technology, which can obtain heat energy from the pipe or equipment heat dissipation shell through magnetic contact, and statically convert it into electrical energy for wireless sensors, wireless meters and other equipment, which can make sensors and meters wiring-free, maintenance-free, and high-frequency collection and receiving. The power module adopts a pure static structure, no rotating parts, no lubrication, no maintenance, green environmental protection, can work normally in most environments (-45°C~450°C), and the service life can reach more than 10 years. It is especially suitable for explosion-proof and highly corrosive occasions.
Depending on the power consumption consumed, the thermoelectric power supply can be adapted to the wireless sensor, allowing the sensor to be deployed without power supply constraints. The R&D and production of the company's self-powered industrial sensors have passed the ISO9001:2015 quality certification.
Product parameters
Model
SFN-DY-600
Dimensions
D70xH90
Power supply type
Thermoelectric power supply
Power supply mode
Endothermic power generation
Self-powered power
500mW
Operating temperature
Contact surface≤ 200°C
Start-up temperature
5°C temperature difference
Rated voltage
4.2V (0-8.4V can be customized)
The power cord is long
Standard 1-2m (0-5m optional)
watertight
IP65 and above
Explosion proof
Explosion-proof can be customized

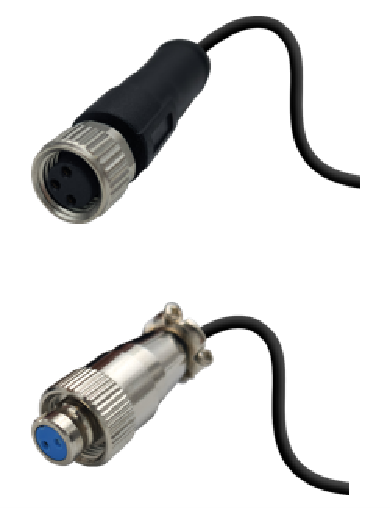

Output interface
Customizable designation
Scope of application
The thermoelectric power module adopts static power generation with temperature difference, and the starting temperature difference is low, and the contact surface and the environment are about 5°C or more to generate electric energy. Due to the widespread existence of heat sources in industrial environments, it can be widely used in workshops, ventilation ducts, confined places, iron and steel chemical industry, oil and gas refining, power plants and other industries, and provide power for wireless sensors, wireless meters and other equipment.
Product Advantages
Electricity is generated statically by taking advantage of the temperature difference between the device and the environment.
The ambient temperature difference of more than 5 °C can generate electricity, and the excess power can be stored for backup.
Built-in power management module, stable and safe power supply.
Magnetic structure design, easy installation, simple deployment, low operation and maintenance costs.
Super stability and anti-interference ability, strong adaptability to application scenarios.
The power supply of the self-generating module is sufficient, and the frequency of collection and reporting after sensor adaptation is adjustable in a large range.
Green and environmentally friendly, pollution-free.
Purely static, no rotating parts, no wear.
The service life is more than 10 years and there is no maintenance required during the process.
Safe and reliable, explosion-proof and anti-corrosion.
